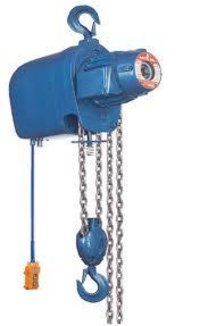

Electric Chain Hoists

Electric Chain Hoists
Electric Chain Hoists
Price And Quantity
  • 1
  • Piece/Pieces,
    Product Specifications
    • Chain Hoist
    • Industrial
    • Roll Container
    • Steel, Aluminum/Alloy
    • 1-3 Tonne
    Product Description

    We are acknowledged as the foremost manufacturer, exporter and supplier of a superior quality range of Electric Chain Hoists. These hoists are manufactured using the finest quality metal and modern technology at our highly advanced production unit. Our offered hoists are widely used for performing different types of electrical work as per the need of the clients. Apart from this, the offered Electric Chain Hoists are made available in various technical specifications.

    Features:

    • Highly functional

    • Safe to use

    • Weather resistance

    • Durability


    FRAME:

    Made from MS Rolled Steel Plates.

    CHAINS:

    Load chains are of Alloy Steel Grade 80 to IS: 6216. For 0.5 Te is of Higher Tensile Steel Grade 40 to IS: 3109 (Part II).

    HOOKS:

    Forged hook as per IS: 8610

    GEARS:

    Special alloy steel case hardened gears (spur & helical type) are enclosed in dust proof gear box.

    LOAD WHEEL :

    Made from Malleable Iron / Spheroidal Graphite Iron.

    MOTOR :

    Conical rotor motor with built in brake is used up to 2Te capacity. Above 2Te, hoist duty squirrel cage motor with ACEM disc brake is used.

    CHAIN GUIDES :

    Steel chain guide roller provided

    HOIST LIMIT SWITCH :

    Limit switch provided for both over hoisting & over lowering.

    PENDANT PUSH BUTTON :

    Provided with control voltage of 24V as standard.

    CERTIFICATION :

    One year guarantee from the date of installation (or) 18 months from the date of supply, whichever is earlier.

    IMPROVEMENTS:

    Our Engineering Department continuously works on design improvements and hence, we reserve the right of effecting any change without notice.

    Technical Specifications

    Capacity (Safe Working load)
    Tonnes
    0.5
    1.0
    2.0
    3.0
    5.0
    Number of falls
    --
    1
    1
    2
    1
    2
    Test Load
    Tonnes
    0.625
    1.25
    2.50
    3.125
    6.25
    Hoisting Speed
    m / min
    4.50
    4.50
    2.25
    5.20
    2.60
    Hoist Motor Power
    hp
    0.75
    1.50
    1.50
    5.00
    5.00
    Maximum Height of Lift
    m
    20
    20
    10
    10
    10
    Cross Travel Speed
    m / min
    18.00
    18.00
    18.00
    18.00
    15.00
    Cross Travel Motor Power
    hp
    0.25
    0.25
    0.25
    0.50
    0.50
    Dimensions A - Hook Suspension
    mm
    475
    520
    740
    950
    1170
    A - Electric Trolley
    mm 575
    600
    820
    1045
    1270
    A - Geared Trolley
    mm 550
    580
    800
    1025
    1250
    B
    mm 115
    115
    130
    265
    265
    C
    mm 115
    115
    125
    170
    170
    E
    mm 650
    700
    550
    960
    960
    F
    mm 315
    315
    295
    460
    460
    J - For Electric Trolley
    mm 330
    330
    330
    330
    350
    J - For Geared Trolley Trolley
    mm 175
    175
    200
    300
    300
    Electric Trolley Track Width Range-I
    mm 100-150
    100-150
    100-150
    100-150
    125-150
    Track width Range-II
    mm 180-210
    180-210
    180-210
    180-210
    180-210
    Minimum clear depth of track
    mm 200
    200
    200
    200
    250
    Minimum Radium of Curvature
    m 2.4
    2.4
    2.4
    2.4
    3.0
    Geared Trolley Track width Range-I
    mm
    80-110
    100-150
    100-150
    100-150
    125-150
    Track width Range-II
    mm
    125-180
    180-210
    180-210
    180-210
    180-210
    Minimum clear depth of track
    mm
    150
    200
    200
    200
    250
    Minimum Radius of Curvature
    m
    1.5
    1.5
    2.0
    2.0
    2.5
    Weight for 3M Lift (Approx)
    Hoist - Hook Suspension
    Kg
    55
    63
    70
    385
    395
    Hoist with Power Trolley
    Kg
    100
    108
    115
    445
    470
    Hoist with Geared Trolley
    Kg
    78
    86
    107
    427
    460
    Weight per Metre Additional Lift
    Kg
    1.0
    1.0
    2.0
    3.3
    6.6
